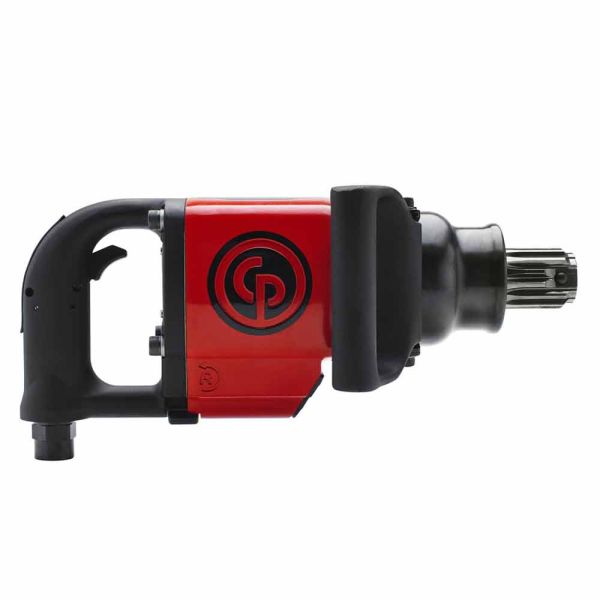

Chicago Pneumatic CP0611-D28L 1 Inch Impact Wrench - Spline (6151590170)

Chicago Pneumatic CP0611-D28L Impact Wrench Features:

• Super Industrial impact with spline #5
• Reliable 2-jaw clutch with the highest Blows per Minutes
• Full Teasing (inside) trigger with durable reverse
• Durable aluminum body & indestructible steel clutch housing
• Compact 3-part construction & easy maintenance
• Hole type socket retainer with O-ring
• 360 Degree adjustable D-type side handle
• Steel internal trigger

Chicago Pneumatic CP0611-D28L Specifications:

• Part number: 6151590170
• Model: CP0611-D28L
• Joint type: soft: yes
• Joint type: hard: yes
• Handle type: D-Handle
• Square drive: #5 spline"
• Working Torque Range (fwd): 900-1,800 ft.lbs: 1,220-2,440
• Maximum Torque (reverse): 2800 ft.lbs: 3790 Nm
• Free speed: 3500 rpm
• Blows per minute: 1020
• Net weight: 22.9 lb: 10.4 kg
• Side to center: 1.81": 46 mm
• Actual air consumption: 68 cfm:
• Air inlet thread size: 0.5 "
• Min. hose size: 1"
• Noise level: 99 db(A)
• Sound Power: 110 db(A)
• Vibration a (ISO-28927-2): 18 m/s²
• Vibration K (ISO-28927-2): 4.1 m/s²
• Socket retainer: Hole
• Clutch type: 2-jaw clutch

Chicago Pneumatic CP0611-D28L Benefits:

• Best impact to loosen big bolts on very demanding industries thanks to Spline #5
• Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
• Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
• Progressive torque thanks to the 2-Jaw clutch
• Unmatched durability with reliable mechanism & durable housing
• Ideal for Heavy Industrial Maintenance and Production applications
