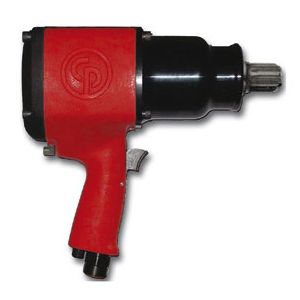

Chicago Pneumatic CP0611P RLS Super Industrial Impact Wrench with Spline #5
Chicago Pneumatic CP0611P RLS Super Industrial Impact Wrench with Spline #5 Excellent for Heavy Industrial Maintenance Production applications.
Categories: Chicago Pneumatic, Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$2,890.75
Model# CP0611P RLS
SKU
015451698027
Chicago Pneumatic CP0611P RLS Wrench Features:
- Super industrial impact with spline #5
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Protective & Durable reverse
- Compact 3-part construction & easy maintenance
- 360 Degree adjustable D-type side handle
Chicago Pneumatic CP0611P Benefits:
- Best impact to target big bolts on very demanding industries thanks to Spline #5
- Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
- Operator comfort and control thanks to perfect ergotnomic design even at VERY high torque
- "Never ending" Torque due to the 2-Jaw clutch
- Unmatched durability with reliable mechanism & durable housing
Chicago Pneumatic CP0611P Specifications:
- Part number: T025414
- Model: CP0611P RLS
- Joint type: soft: Joint type: soft
- Joint type: hard: Joint type: hard
- Handle type: Pistol
- Square drive: #5 spline":
- Working Torque Range (fwd): 1,220-2,440 Nm: 900-1,800
- Maximum Torque (fwd): 3790 Nm: 2800 ft.lbs
- Maximum Torque (reverse): 3790 Nm: 2800 ft.lbs
- Free speed: 3500 rpm
- Blows per minute: 1020
- Net weight: 10.5 kg: 23.1 lb
- Power/weight ratio: 361 Nm/kg: 121.2 ft.lb/lb
- Length: 272 mm: 10.7"
- Side to center: 46 mm: 1.81"
- Actual air consumption: 22.6 l/s: 48 cfm
- Air inlet thread size: 0.5 "
- Noise level: 102 db(A)
- Sound Power: 113 db(A)
- Vibration (ISO-8662-7): 12.4 m/s²
- Vibration a (ISO-28927-2): 16.8 m/s²
- Vibration K (ISO-28927-2): 4.7 m/s²
- Socket retainer: #5 spline
- Clutch type: 2-Jaw
- Bolt size: M36
Model# | CP0611P RLS |
---|---|
Brand | Chicago Pneumatic |
