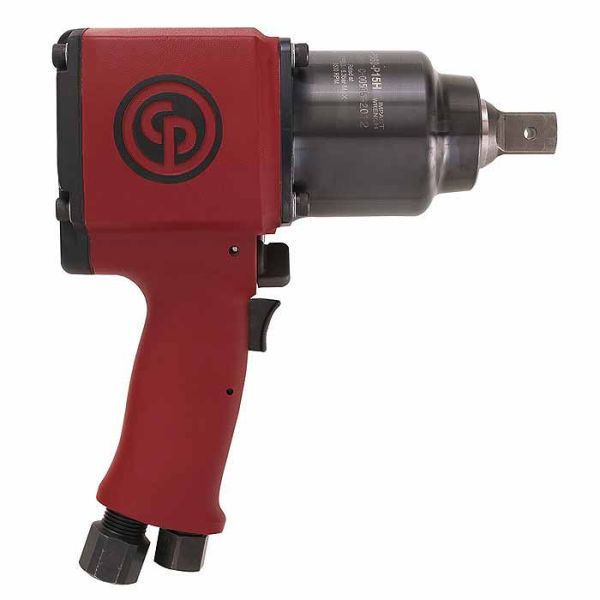

Chicago Pneumatic CP6060-P15H 3/4 Inch Industrial Impact Wrench (6151590090)
Chicago Pneumatic CP-6060 P15H is a pneumatic impact wrench 3/4 "designed for industrial applications. Key features and benefits of the model: The highest quality tools can withstand the worst conditions of use. Unsurpassed comfort and safety. The best wrench 3/4" in its class to industrial maintenance and production applications. Reliable 2-jaw coupling with steel casing. Aluminum body. Robust steel non-return valve and drain. The compact, 3-piece construction, ensuring easy maintenance. Latch-type cap Hole with O-ring security. The model has the same characteristics as the CP 6060-P15R, differing only latch the cap. Designed for the toughest industrial applications in continuous operation.
Chicago Pneumatic CP-6060 P15H Impact Wrench Features:
- Super Industrial 3/4" impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Durable reverse valve & steel trigger
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-ring for Safety
Chicago Pneumatic CP-6060 P15H Specifications:
- Part number: 6151590090
- Model: CP6060-P15H
- Handle type: Pistol
- Square drive: 3/4"
- Working Torque Range (fwd): 200-900 ft.lbs: 270-1220
- Maximum Torque (reverse): 1100 ft.lbs: 1490 Nm
- Free speed: 4000 rpm
- Blows per minute: 1100
- Net weight: 11.7 lb: 5.3 kg
- Power/weight ratio: 94 ft.lb/lb: 281.1 Nm/kg
- Length: 8.7": 222 mm
- Side to center: 1 1/2": 37 mm
- Actual air consumption: 52.9 cfm:
- VST2: 35
- Free speed air consumption: 74.1 cfm:
- Air inlet thread size: 0.375 "
- Min. hose size: 1/2": 13 mm
- Noise level: 92 db(A)
- Sound Power: 103 db(A)
- Vibration a (ISO-28927-2): 13.9 m/s²
- Vibration K (ISO-28927-2): 4.1 m/s²
- Socket retainer: Hole
- Clutch type: 2-jaw clutch
- Box dimensions: 11,6*11,6*4,5: 295*295*115
- Over carton: 12,2*12,2*9,6: 310*310*245
Chicago Pneumatic CP-6060 P15H Benefits:
- Constant & progressive Performances thanks to the 2-Jaw clutch
- Superior Quality resisting to worst conditions and usages
- Unmatched comfort for the Safety First
- Best 3/4" impact for Industrial Maintenance and Production applications
Model# | CP6060-P15H |
---|---|
Brand | Chicago Pneumatic |
