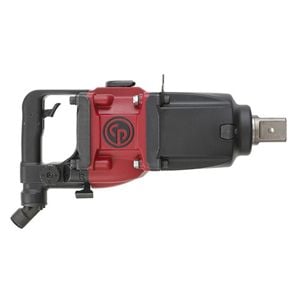

Chicago Pneumatic CP6930-D35 1-1/2 Inch Industrial Impact Wrench with Hole Type Socket Retainer (6151590390)
Chicago Pneumatic CP6930-D35 1-1/2 Inch Industrial Impact Wrench with Hole Type Socket Retainer Operator comfort and control with 4-positions regulator and side D-handle.
Categories: Chicago Pneumatic, Impact Wrenches, 1-2 Inch Air Impact Wrenches
Free Shipping
$3,897.54
Model# CP6930-D35
SKU
015451714680
Chicago Pneumatic CP6930-D35 Industrial Impact Wrench Features:
- 1-1/2" industrial impact wrench with hole type socket retainer
- Durable twin hammer clutch with oil bath
- Robust aluminum body & clutch housing
- Reversible D-type side handle
- Reversible and teasing steel trigger
- 4-settings power regulator
- Rotative air exhaust
- Removable suspension hook
Chicago Pneumatic CP6930-D35 Benefits:
- Powerful and durable twin hammer clutch with oil bath
- Robust aluminum housing with steel trigger and protective plate in the front
Chicago Pneumatic CP6930-D35 Specifications:
- Part number: 6151590390
- Model: CP6930-D35
- Handle type: D-Handle Inside Trigger
- Square drive: 1 1/2"
- Working Torque Range (fwd): 600-2,650 Nm: 445-1,950
- Maximum Torque (reverse): 3900 Nm: 2875 ft.lbs
- Free speed: 4300 rpm
- Blows per minute: 850
- Net weight: 14.35 kg: 31.6 lb
- Power/weight ratio: 271.777003484321 Nm/kg: 90.9810126582278 ft.lb/lb
- Length: 440 mm: 17.3"
- Side to center: 65 mm: 2.56"
- Actual air consumption: 30 l/s: 64 cfm
- Free speed air consumption: 47 l/s: 100 cfm
- Air inlet thread size: 0.5 "
- Min. hose size: 19 mm: 3/4"
- Noise level: 101.5 db(A)
- Sound Power: 112.5 db(A)
- Vibration a (ISO-28927-2): 15.1 m/s²
- Vibration K (ISO-28927-2): 5.5 m/s²
- Socket retainer: Hole
- Clutch type: Twin hammer oil bath
- Bolt size: M40
Model# | CP6930-D35 |
---|---|
Brand | Chicago Pneumatic |
