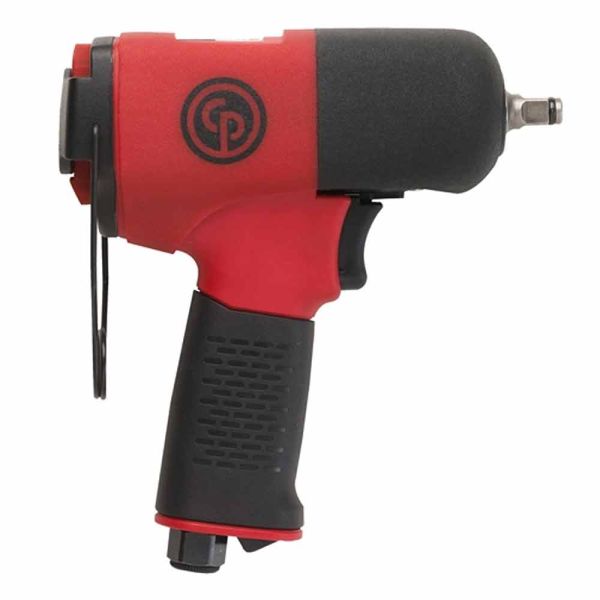

Chicago Pneumatic CP8222-R 3/8 Inch Compact Impact with Ring Retainer (6151590230)
Chicago Pneumatic CP-8222 R is a pneumatic impact wrench 3/8 ". The main features and advantages of the model: Strong and durable Clutch Twin Hammer. The composite body and aluminum clutch housing. 3 power settings in forward, full power for loosening. Very low noise and vibration. Lightweight - only 1.2 kg. Compact size, so that it can be operated in places with limited access. the latch-type cap ring. Designed for industrial applications with medium intensity, ie. the production and maintenance.
Categories: Chicago Pneumatic, Impact Wrenches, 3-8 Inch Air Impact Wrenches
Free Shipping
$305.58
Model# CP8222-R
SKU
015451702502
Chicago Pneumatic CP8222-R Compact Impact Features:
- 3/8" compact impact with ring retainer
- Powerful & durable twin hammer clutch
- Composite body and aluminum clutch housing
- 3 power settings in forward & full power in reverse
- Protective cover & suspension bail
- Progressive trigger & Rubber grip
Chicago Pneumatic CP8222-R Benefits:
- Very low noise, very limited vibration and lightweight for operator comfort
- Powerful but easy to control for assembly/disassembly operations
- Compact for easy access in confined areas
- Durable and reliable impact for Industrial Maintenance and Production applications
Chicago Pneumatic CP8222-R Specifications:
- Model: CP8222-R
- Part number: 6151590230
- Actual air consumption: 10 l/s
- Air inlet thread size: 1/4 "
- Blows per minute: 1250
- Box dimensions: 70 x 235 x 200 mm
- Clutch type: Twin hammer
- Free speed: 11500 rpm
- Handle type: Pistol
- Length: 177 mm
- Maximum Torque (reverse): 450 Nm
- Min. hose size: 10 mm
- Net weight: 1.2 kg
- Over carton: 360 x 245 x 410 mm
- Power/weight ratio: 375 Nm/kg
- Side to center: 30 mm
- Socket retainer: Friction ring
- Sound Power: 100 db(A)
- Sound pressure: 89 db(A)
- Square drive: 3/8 "
- VST2: 17.9
- Vibration: 5.8 m/s²
- Vibration uncertainty (K): 2.4 m/s²
- Vibration-ISO: ISO-28927-2
- Working Torque Range (fwd): 80 - 400 Nm
| Model# | CP8222-R |
|---|---|
| Brand | Chicago Pneumatic |
