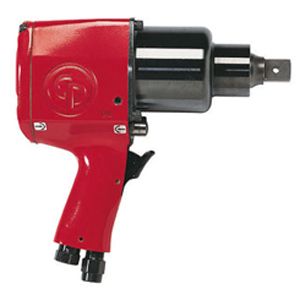

Chicago Pneumatic CP9561 3/4 Inch Industrial Impact Wrench with Hole-Type Socket Retainer
Chicago Pneumatic CP9561 3/4" Industrial Impact Wrench with Hole-Type Socket Retainer Reliable pin clutch in oil bath & durable housing, Compact 3-part construction & easy to maintain.
Categories: Chicago Pneumatic, Impact Wrenches, 3-4 Inch Impact Wrenches
Free Shipping
$872.83
Model# CP9561
SKU
015451022624
Chicago Pneumatic CP9561 Compact Impact Features:
- 3/4" Industrial impact wrench with Hole-type socket retainer
- DYNA-PACT (Pin clutch) oil bath
- Aluminum body & steel clutch housing
- Durable reverse valve & steel trigger
- Built-in regulator on the handle
Chicago Pneumatic CP9561 Benefits:
- Industrial Maintenance & Production applications
- High performances, especially on hard joints
- Operator comfort due to low vibrations and noise level
- Great control with a multi-position regulator
- Reliable pin clutch in oil bath & durable housing
- Compact 3-part construction & easy to maintain
Chicago Pneumatic CP9561 Specifications:
- Part number: 6151909561
- Model: CP9561
- Handle type: Pistol
- Square drive: 3/4"
- Working Torque Range (fwd): 200-950 Nm: 150-700
- Maximum Torque (reverse): 1250 Nm: 885 ft.lbs
- Free speed: 5500 rpm
- Blows per minute: 900
- Net weight: 5.1 kg: 11.1 lb
- Power/weight ratio: 200 Nm/kg: 67.6 ft.lb/lb
- Length: 216 mm: 8.5"
- Side to center: 39 mm: 1.54"
- Actual air consumption: 14.1 l/s: 30 cfm
- Air inlet thread size: 0.25 "
- Noise level: 100 db(A)
- Sound Power: 111 db(A)
- Vibration (ISO-8662-7): 5.1 m/s²
- Vibration α (ISO-28927-2): 7.7 m/s²
- Vibration K (ISO-28927-2): 2.4 m/s²
- Socket retainer: Hole
- Clutch type: Pin clutch
Model# | CP9561 |
---|---|
Brand | Chicago Pneumatic |
