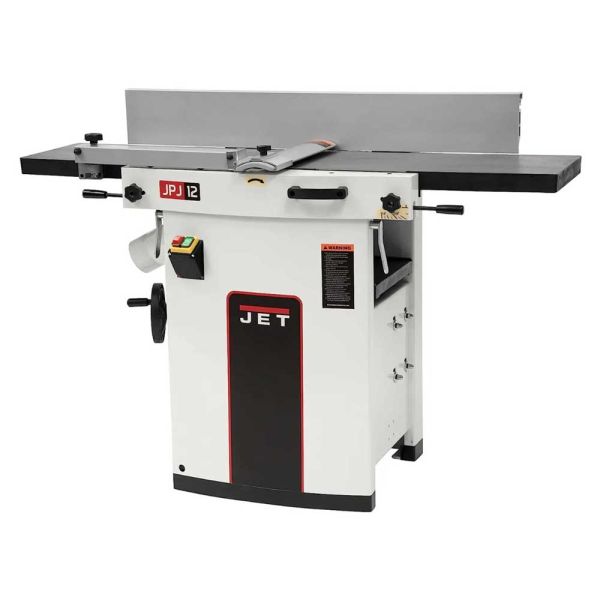

Jet 708476 JJP-12HH 12 Inch Planer /Jointer with Helical Head -


Jet 708476 JJP-12HH 12 Inch Planer /Jointer with Helical Head

Payments Options
Pay with Paypal Pay with credit Cards

Product Overview

Jet 708476 is a JJP-12HH 12 Inch Planer /Jointer with Helical Head. The innovative JET JJP-12HH Helical Head 12 Inch Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.

Product Features

Jet 708476 12 Inch Planer Features:
  • Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
  • Extra large aluminum extruded fence with centered controls for quick adjustments
  • Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
  • Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
  • Built-in dust chute with 4" dust port used for both jointing and planing operations
  • Large handwheel for quick and precise adjustments of planer table
  • Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
  • Magnetic switch provides safer and more reliable operation
Jet 708476 Specifications:
  • Cutterhead Speed: 5500 RPM
  • Cutterhead Diameter: 2¾ Inch
  • Table Height: 33½ Inch
  • Dust Port Outside Diameter: 4 Inch
  • Dust Collection Minimum CFM Required: 400 cu.ft/min
  • Motor Power: 3 HP
  • Motor Voltage: 230 V
  • Prewired Voltage: 230 V
  • Motor Current: 12.5 A
  • Motor Phase: 1 Ph
  • Height: 40 Inch
  • Width: 34 Inch
  • Length: 55 Inch

More Info/Prop 65

Model# 708476
UPC 662756125996
Brand Jet
