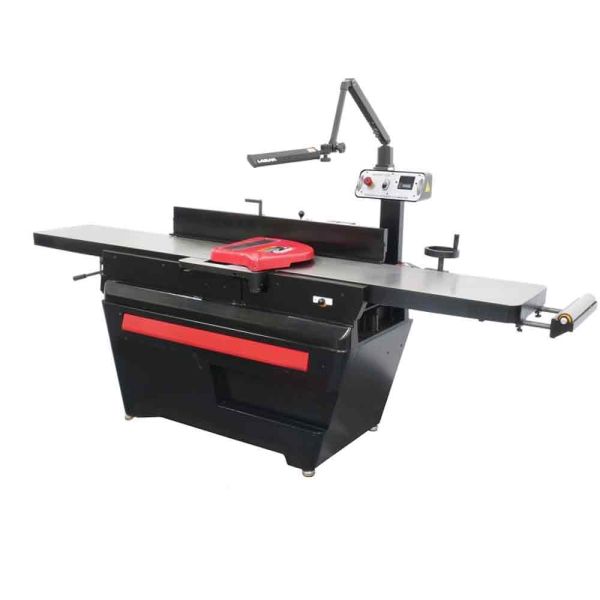

Laguna MJ16X100P-0130 JX|16 ShearTec: II Jointer

$7,850.00
UPC MJ16X100P-0130
Model# MJ16X100P-0130
All-new for 2021, the Laguna JX|16 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

Laguna MJ16X100P-0130 JX|16 ShearTec: II Jointer Features:

  • Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer.
  • This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
  • New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
  • In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials
  • ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
  • Deluxe Fence - 5-¾” fence with flip-down small fence for intricate work
  • Worklight Ready - Built-in outlet and bracket for optional LED work light
  • Power-feeder Ready - Included bracket to mount optional power-feeder

Laguna MJ16X100P-0130 Specifications:

  • Motor: 220v 7.5HP 3phase 60hz /20 Amp.
  • CSA: Yes
  • Bed Size: 16 x 100"
  • Infeed Table Pull-out Extension: 10"
  • Rabbeting Capacity: 3/4"
  • Fence Size: 5-3/4 x 47" Alu Fence
  • Fence Tilt: +45/90°
  • Max. Depth of Cut: 1/8"
  • Table height from floor: 32"
  • Safety bar shut-off: Yes
  • Bracket to mount Light: Yes
  • 110v outlet for light: Yes
  • Bracket to mount Feeder: Yes
  • Dust Port Diameter: 6"
  • Cutterhead Insert #: 90 x 4-sided Carbide, 6 Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 3-7/8"
  • Bed Adjustment: Parallelogram
  • Dimensions set up approx.: 103" x 48"
  • Dimensions Shipping: 105"x 35"x 48"
  • Net/Ship Weight # of boxes: Lbs. 1078/1254 1 Box
