662755506109
Free Shipping
$6,699.99

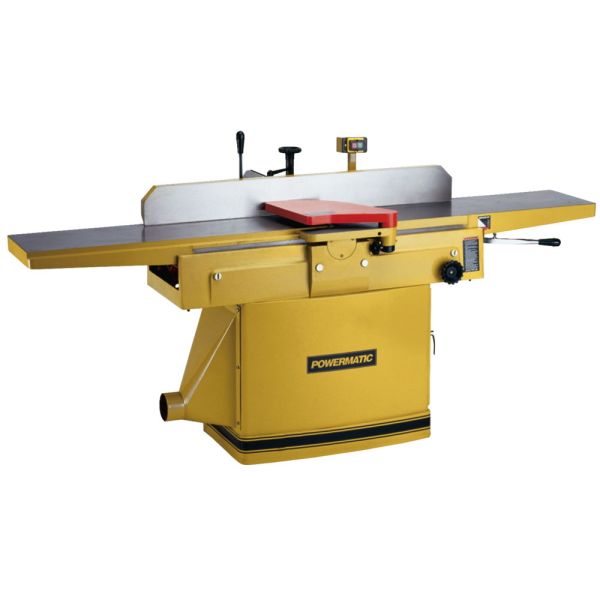

Powermatic 1791308 1285, 3HP, 3Ph, 230V/460V (Prewired 230V), Helical Head Jointer (Woodworking)

Free Shipping
$6,699.99
Free Shipping
UPC 662755506109
Model# 1791308

Powermatic 1791308 Model 1285, 3HP, 3Ph, 230V/460V (Prewired 230V), Helical Head (Woodworking). This 12 Inch jointer offers big capacity and performance in a machine that is loaded with features. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment.

Powermatic 1791308 230 Volt / 460 V Head Jointer Features :

  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Large 84" x 12" table surface for heavy-duty work
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
  • 3HP motor provides plenty of power
  • The helical system makes fast work of knife changing and never needs adjustment.
  • Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead.
  • This design also ensures the tables remain perfectly parallel even after years of tough duty.
  • Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.
  • Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock.

Powermatic 1791308 Specifications:

  • Cutting Capacity (W x D): 11 3/4 x 3/4 Inch
  • Cutterhead Speed: 5000 RPM
  • Number of Knives (Helical/Standard): 42 two-sided inserts (30 x 12 x 2mm)with 2 rabbeting insert
  • Standard Knife Size (L x W x T): 30 x 12 x 2 mm
  • Table Height: 31½ Inch
  • Table Size (L x W): 84 x 12 Inch
  • Fence Size (L x H): 47 x 5 1/2 Inch
  • Fence Tilts: 45 ° left, 45 ° right
  • Fence Positive Stops: -45 °, 45 ° and 90 °
  • Dust Port Outside Diameter: 6 Inch
  • Dust Collection Minimum CFM Required: 800 cu.ft/min
  • Motor Power: 3 HP
  • Motor Phase: 3 Ph
  • Motor Voltage: 230 / 460 V
  • Prewired Voltage: 230 V
  • Model Number: 1285
  • Overall Dimensions: 89.5 x 28 x 39
  • Height: 39 Inch
  • Width: 28 inch Length: 89.5 Inch

Powermatic 1791308 Includes :

  • Cutterhead guard
  • Heavy duty fence
  • Dust port
  • Push blocks
  • Tool kit
