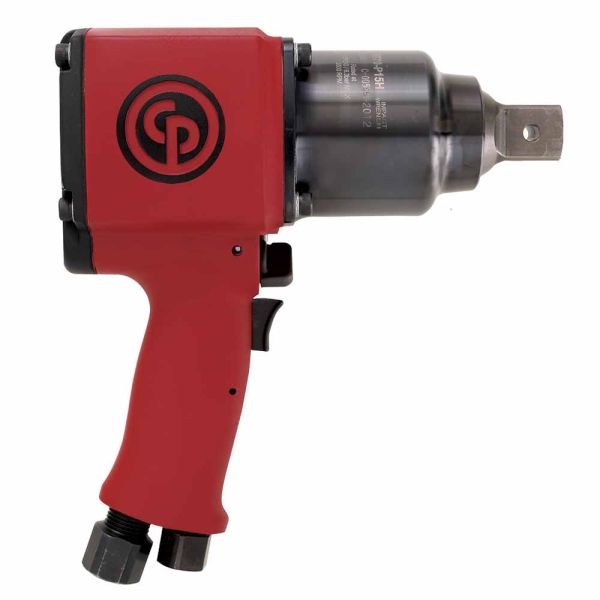

Chicago Pneumatic CP6070-P15H 1 Inch Impact Wrench (6151590110)
Chicago Pneumatic CP-6070 P15H is a pneumatic impact wrench 1 ". Key features and benefits of the model: 2-jaw clutch providing continuous and efficient operation. The highest quality and durability. The high level of safety. Best Industrial key 1 "in its class. Lightweight - only 5.4 kg. Aluminum body and steel chassis clutch. Durable and reversible steel trigger. Compact 3-piece construction and easy maintenance. Performance: 4000 [rev / min]. Maximum torque back 1490 [Nm]. Designed for industrial applications.
Categories: Chicago Pneumatic, Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$1,795.44
Model# CP6070-P15H
SKU
015451709105
Chicago Pneumatic CP-6070 P15H Impact Wrench Features:
- Super Industrial lightweight 1" impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Durable reverse & steel trigger
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-Ring for Safety
Chicago Pneumatic CP-6070 P15H Specifications:
- Part number: 6151590110
- Model: CP6070-P15H
- Handle type: Pistol
- Square drive: 1"
- Working Torque Range (fwd): 200-900 ft.lbs: 270-1220
- Maximum Torque (reverse): 1100 ft.lbs: 1490 Nm
- Free speed: 4000 rpm
- Blows per minute: 1100
- Net weight: 11.9 lb: 5.4 kg
- Power/weight ratio: 92.4 ft.lb/lb: 275.9 Nm/kg
- Length: 8.9": 227 mm
- Side to center: 1 1/2": 37 mm
- Actual air consumption: 52.9 cfm
- VST2: 35
- Free speed air consumption: 74.1 cfm
- Air inlet thread size: 0.375 "
- Min. hose size: 1/2": 13 mm
- Noise level: 92 db(A)
- Sound Power: 103 db(A)
- Vibration a (ISO-28927-2): 13.9 m/s²
- Vibration K (ISO-28927-2): 4.1 m/s²
- Socket retainer: Hole
- Clutch type: 2-jaw clutch
- Box dimensions: 11,6*11,6*4,5: 295*295*115
- Over carton: 12,2*12,2*9,6: 310*310*245
Chicago Pneumatic CP-6070 P15H Benefits:
- Constant & progressive Performances thanks to the 2-Jaw clutch
- Superior Quality resisting to worst conditions and usages
- Unmatched comfort for the Safety First
- Best 1" impact lightweight for Industrial Maintenance and Production applications
| Model# | CP6070-P15H |
|---|---|
| Brand | Chicago Pneumatic |
