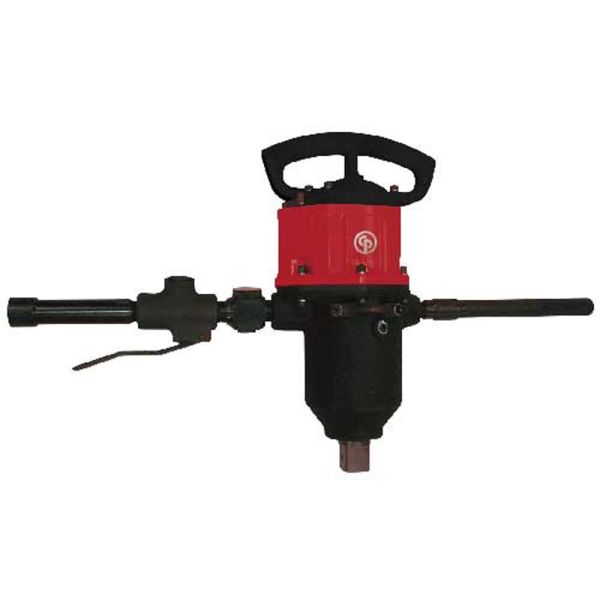

Chicago Pneumatic CP6130-T70 1-1/2 Inch T-Handle Impact Wrench (6151590010)
Chicago Pneumatic CP 6130-T70 is a pneumatic impact wrench 1 1/2 ". The main features and advantages of the model: an amazing time picking (the M56) designed for industrial maintenance and production applications. Extreme twarlosc: robust components, mechnizmy reliable and robust housing. high operator comfort: continuously adjustable, low vibration and reduced noise. The compact, 3-piece design for easy maintenance. Chop 1 1/2 "handle type T. Reliable clutch type Double Rocking Dog. Durable aluminum body and clutch housing. 5 position control, progressive trigger and easy change of direction of rotation. Equipped to handle balancer. Designed for the toughest industrial applications in continuous operation.
Chicago Pneumatic CP6130-T70 Impact Wrench Features:
- 1-1/2" Super Duty T-Handle
- Reliable Double Rocking Dog clutch
- Durable aluminum body & clutch housing
- 5-positions regulator, progressive trigger & Easy reverse
- Removable dead handle and comfortable Top handles
- Suspension hole for easy hoist/balancer hooking
Chicago Pneumatic CP6130-T70 Specifications:
- Part number: 6151590010
- Model: CP6130-T70
- Handle type: T-Handle
- Square drive: 1 1/2"
- Working Torque Range (fwd): 2,430-5,240 ft.lbs: 3,300-7,100
- Maximum Torque (reverse): 9220 ft.lbs: 12500 Nm
- Free speed: 4000 rpm
- Blows per minute: 900
- Net weight: 72.6 lb: 33 kg
- Power/weight ratio: 127 ft.lb/lb: 378.8 Nm/kg
- Length: 19.7": 500 mm
- Side to center: 3.14": 80 mm
- Actual air consumption: 67.3 cfm:
- Air inlet thread size: 1 "
- Min. hose size: 3/4": 19 mm
- Noise level: 104 db(A)
- Sound Power: 115 db(A)
- Vibration (ISO-8662-7): N/A m/s²
- Vibration a (ISO-28927-2): 4.7 m/s²
- Vibration K (ISO-28927-2): 1.7 m/s²
- Socket retainer: Hole
- Clutch type: Double Rocking Dog
- Box dimensions: 11,02x21,26x12,2: 280x540x310
Chicago Pneumatic CP6130-T70 Benefits:
- Incredible breaking torque (up to M56) for Industrial Maintenance & Production applications
- Extreme durability: resistant parts, reliable mechanisms & robust housing
- Operator comfort: smooth control, low vibrations & limited noise
- Compact 3-parts construction for easy maintenance
| Model# | CP6130-T70 |
|---|---|
| Brand | Chicago Pneumatic |
