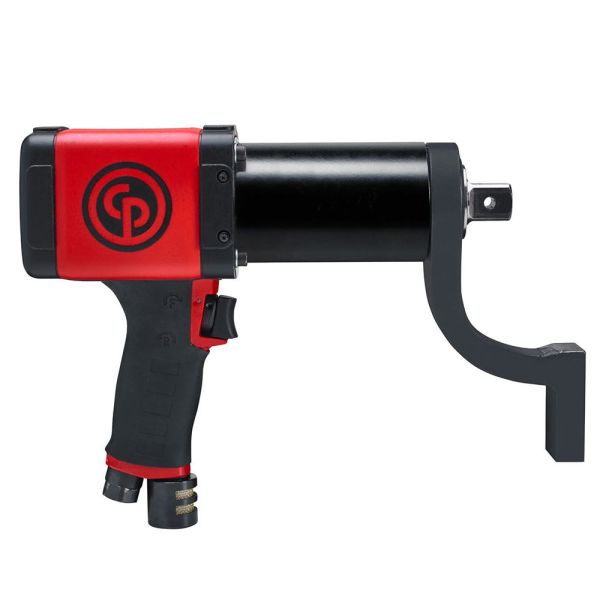

Chicago Pneumatic CP6613-FRL 3/4 Inch Lightweight Pneumatic Nutrunner PK
Chicago Pneumatics’ CP6613 weighs as little as 9.7 lbs. (4.4 kg) with the reaction arm. Small but powerful, the CP6613 is equipped with a robust gearbox and a high performance air motor, similar to the industrial impact wrenches motors, delivering a powerful 960 ft.lbs (1300 Nm ) in forward or reverse for high productivity. The max torque of CP6641 is 3100 ft.lbs (4100 Nm).
Operator comfort is an integral part of this pneumatic nutrunner’s design. This is evident in the fact that the CP66 series is recognized to have a vibration level close to zero. The torque set up is defined with the CP Air Torque Control FRL which enables extremely fine pressure adjustment to reach a torque accuracy of about +/- 5%.Categories: Impact Wrenches, 3-4 Inch Impact Wrenches
Free Shipping
$5,418.97
Model# CP6613-FRL
SKU
015451777104
Chicago Pneumatic CP6613-FRL Features:
- Replaceable protective cover
- Reliable Gearbox: 13,000 cycles before maintenance
- Vane type high performance air motor same as industrial impact wrench
- Capable of reaching high torque accuracy
- Different reaction arm types and shapes available
- Reduce operator fatigue and risks of MSDs
Chicago Pneumatic CP6613-FRL Specifications:
- Model: CP6613
- Part number: 6151800090
- Air inlet thread size: 3/8 "
- Bolt size: 20-27 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO 15744
- European Standards: EN ISO 11148-6:2013
- Free speed: 20 rpm
- Free speed air consumption: 23 l/s
- Handle type: Pistol
- Height: 212 mm
- Length: 254 mm
- Maximum Torque (fwd): 1300 Nm
- Maximum Torque (reverse): 1300 Nm
- Min. hose size: 13 mm
- Net weight: 3.7 kg
- Reaction bar: S-type
- Reversible: Reversible
- Side to center: 32 mm
- Socket retainer: Hole
- Sound Power: 101 db(A)
- Sound pressure: 90 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 19 mm
- Torque preset #: Multi
- Vibration: <2,5 m/s²
- Vibration ISO: ISO 28927-2
- Weight Including Reaction Arm: 4.4 kg
- Weight w/o Reaction Arm: 3.7 kg
- Width: 72 mm
- Working Torque Range (fwd): 320 - 1300 Nm
- Working Torque Range (reverse): 320 - 1300 Nm
Chicago Pneumatic CP6613-FRL Benefits:
- Robust
- Accurate
- Strong lightweight reaction arm
- Lightweight
| Model# | CP6613-FRL |
|---|---|
| Brand | Chicago Pneumatic |
