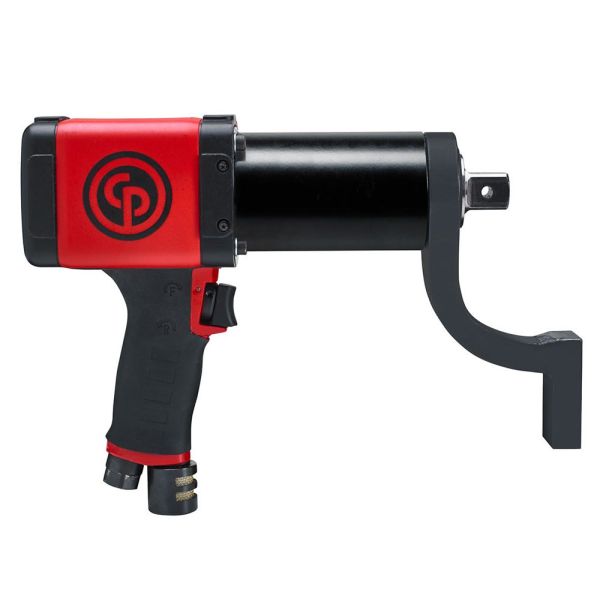

Chicago Pneumatic CP6613 Pneumatic Nutrunner
Chicago Pneumatic launches its first compact and robust pneumatic nutrunner, the CP66 series, perfect for flange-related and other bolting applications in the oil & gas, power generation, and wind energy industries. It also provides a more durable, powerful and safer alternative to an impact wrench in remanufacturing, maintenance, repair and overhaul operations within the mining, off-road and heavy-truck sectors.
Categories: Impact Wrenches, 3-8 Inch Air Impact Wrenches
Free Shipping
$4,898.72
Model# CP6613
SKU
015451775100
Chicago Pneumatic CP6613 Pneumatic Nutrunner Features:
- Replaceable protective cover
- Reliable Gearbox: 13,000 cycles before maintenance
- Vane type high performance air motor same as industrial impact wrench
- Capable of reaching high torque accuracy
- Different reaction arm types and shapes available
- Reduce operator fatigue and risks of MSDs
Chicago Pneumatic CP6613 Specifications:
- Model: CP6613
- Part number: 6151800090
- Air inlet thread size: 3/8 "
- Bolt size: 20-27 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO 15744
- European Standards: EN ISO 11148-6:2013
- Free speed: 20 rpm
- Free speed air consumption: 23 l/s
- Handle type: Pistol
- Height: 212 mm
- Length: 254 mm
- Maximum Torque (fwd): 1300 Nm
- Maximum Torque (reverse): 1300 Nm
- Min. hose size: 13 mm
- Net weight: 3.7 kg
- Reaction bar: S-type
- Reversible: Reversible
- Side to center: 32 mm
- Socket retainer: Hole
- Sound Power: 101 db(A)
- Sound pressure: 90 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 19 mm
- Torque preset #: Multi
- Vibration: <2,5 m/s²
- Vibration ISO: ISO 28927-2
- Weight Including Reaction Arm: 4.4 kg
- Weight w/o Reaction Arm: 3.7 kg
- Width: 72 mm
- Working Torque Range (fwd): 320 - 1300 Nm
- Working Torque Range (reverse): 320 - 1300 Nm
Chicago Pneumatic CP6613 Benefits:
- Robust
- Accurate
- Strong lightweight reaction arm
- Lightweight
| Model# | CP6613 |
|---|---|
| Brand | Chicago Pneumatic |
