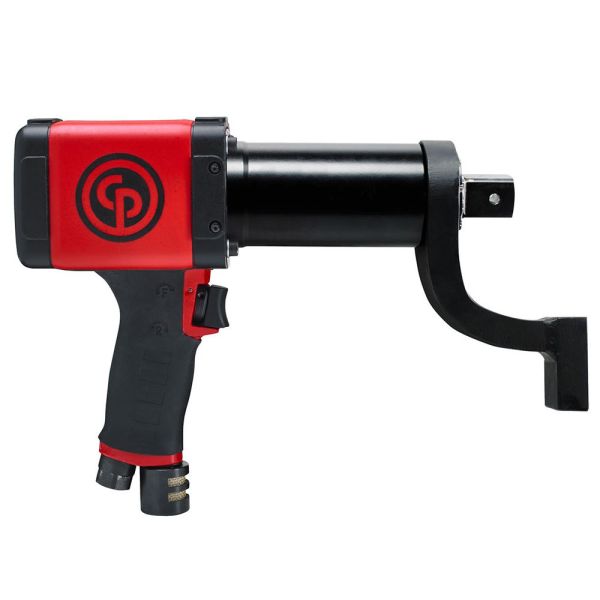

Chicago Pneumatic CP6626 1 Inch Pneumatic Nutrunner with 1,900 ft.lbs / 2,600 Nm Max
High durability and low maintenance pneumatic nutrunners, perfect for flange-related and other bolting applications in the oil & gas, power generation, and wind energy industries.
Categories: Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$5,892.13
Model# CP6626
SKU
015451775117
Chicago Pneumatic CP6626 Features:
- Replaceable protective cover
- Reliable Gearbox: 13,000 cycles before maintenance
- Vane type high performance air motor same as industrial impact wrench
- Capable of reaching high torque accuracy
- Different reaction arm types and shapes available
- Reduce operator fatigue and risks of MSDs
Chicago Pneumatic CP6626 Specifications:
- Model: CP6626
- Part number: 6151800100
- Bolt size: 20 - 36 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO 15744
- European Standards: EN ISO 11148-6:2013
- Free speed: 10 rpm
- Handle type: Pistol
- Height: 212 mm
- Length: 300 mm
- Maximum Torque (fwd): 2600 Nm
- Maximum Torque (reverse): 2600 Nm
- Net weight: 5.1 kg
- Reaction bar: S-type
- Reversible: Reversible
- Side to center: 34 mm
- Socket retainer: Hole
- Sound Power: 101 db(A)
- Sound pressure: 90 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 25 mm
- Torque preset #: Multi
- Vibration: <2,5 m/s²
- Vibration ISO: ISO 28927-2
- Weight Including Reaction Arm: 6.5 kg
- Weight w/o Reaction Arm: 5.1 kg
- Width: 72 mm
- Working Torque Range (fwd): 700 - 2600 Nm
- Working Torque Range (reverse): 700 - 2600 Nm
Chicago Pneumatic CP6626 Benefits:
- Robust
- Accurate
- Strong lightweight reaction arm
Model# | CP6626 |
---|---|
Brand | Chicago Pneumatic |
