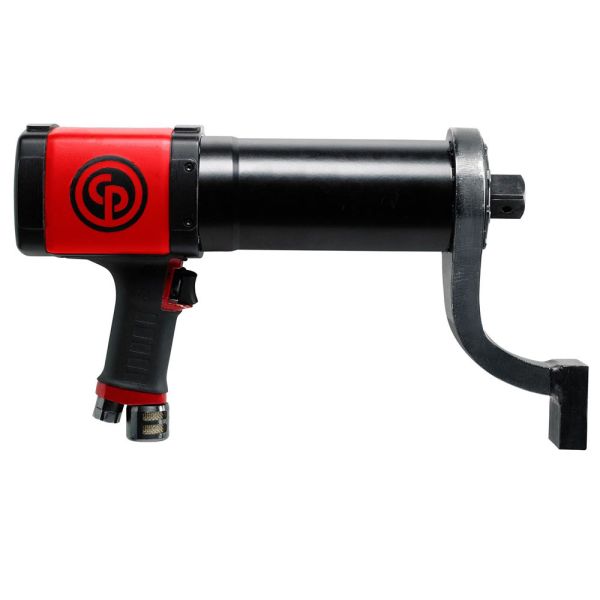

Chicago Pneumatic CP6641-FRL 1 Inch Nutrunner Pk
The most robust pneumatic nutrunner in its class. Among the smallest gearboxes. The highest accuracy with the air torque control FRL pack.
Categories: Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$7,291.32
Model# CP6641-FRL
SKU
015451777128
Chicago Pneumatic CP6641-FRL Features:
- Replaceable protective cover
- Reliable Gearbox: 13,000 cycles before maintenance
- Vane type high performance air motor same as industrial impact wrench
- Capable of reaching high torque accuracy
- Different reaction arm types and shapes available
- Reduce operator fatigue and risks of MSDs
Chicago Pneumatic CP6641-FRL Specifications:
- Model: CP6641
- Part number: 6151800110
- Average air consumption: 23 l/s
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO 15744
- European Standards: EN ISO 11148-6:2013
- Free speed: 10 rpm
- Handle type: Pistol
- Height: 228 mm
- Length: 361 mm
- Maximum Torque (fwd): 4100 Nm
- Maximum Torque (reverse): 4100 Nm
- Net weight: 8.8 kg
- Reaction bar: S-type
- Reversible: Reversible
- Side to center: 40 mm
- Socket retainer: Hole
- Sound DBA pressure: 90 db(A)
- Sound Power: 101 db(A)
- Sound pressure: 90 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 25 mm
- Torque preset #: Multi
- Vibration: <2,5 m/s²
- Vibration ISO: ISO 28927-2
- Vibration uncertainty (K): / m/s²
- Weight Including Reaction Arm: 10.8 kg
- Weight w/o Reaction Arm: 8.8 kg
- Width: 100 mm
- Working Torque Range (fwd): 1000 - 4100 Nm
- Working Torque Range (reverse): 1000 - 4100 Nm
Chicago Pneumatic CP6641-FRL Benefits:
- Robust
Accurate
Strong lightweight reaction arm
Model# | CP6641-FRL |
---|---|
Brand | Chicago Pneumatic |
