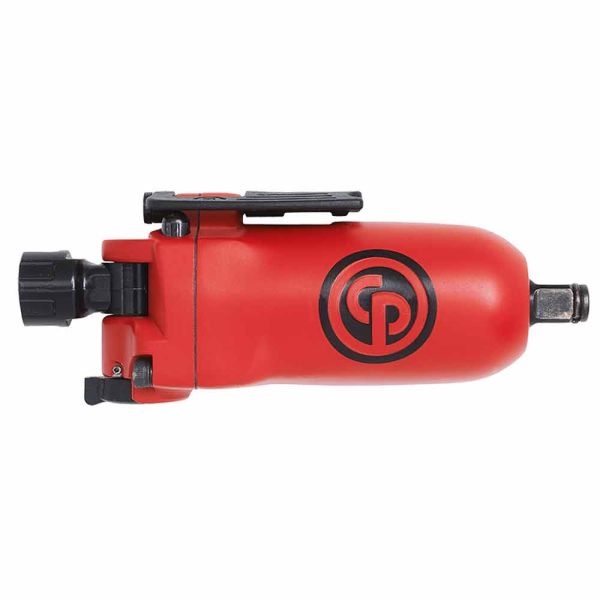

Chicago Pneumatic CP7711 1/4 Inch Mini Butterfly Compact & Lightweight Impact Wrench (8941077110)
Chicago Pneumatic CP7711 1/4 Inch Mini Butterfly Compact & Lightweight Impact Wrench Ideal tool for transmission and engine repair works, body panels, oil pans, ignitions, motor cycle repair and vehicle seats.
Categories: Chicago Pneumatic, Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$225.71
Model# CP7711
SKU
015451716462
Chicago Pneumatic CP7711 Impact Wrench Features:
- 5.5 in. / 140 mm length, provides easier access to hard to reach places
- 1.16 lbs. / 0.53 Kg
- 80 ft.lbs. / 110 Nm in reverse
- Single hammer mechanism & Aluminum housing
- Power regulator in the back: 3 positions on both sides
- Butterfly shift for forward / reverse
- Built-in 180 Degree air inlet swivel
Chicago Pneumatic CP7711 Specifications:
- Part number: 8941077110
- Model: CP7711
- Handle type: Butterfly
- Square drive: 1/4":
- Working Torque Range (fwd): 6.6-59 ft.lbs: 9-80
- Maximum Torque (reverse): 81 ft.lbs: 110 Nm
- Free speed: 15000 rpm
- Net weight: 1.1 lb: 0.53 kg
- Power/weight ratio: 73.6 ft.lb/lb: 220 Nm/kg
- Length: 5 1/2": 140 mm
- Side to center: 1.6": 40 mm
- Average air consumption: 1 1/2 cfm
- Actual air consumption: 6 cfm
- Air inlet thread size: 0.25 "
- Min. hose size: 3/8": 10 mm
- Noise level: 92 db(A)
- Sound Power: 103 db(A)
- Vibration a (ISO-28927-2): 4 m/s²
- Vibration K (ISO-28927-2): 1 m/s²
- Socket retainer: Friction ring
- Clutch type: Rocking dog clutch
Chicago Pneumatic CP7711 Benefits:
- 15% SMALLER than any other butterfly impacts
- Compact
- Lightweight
- Powerful
- Easy operation
- Durable
