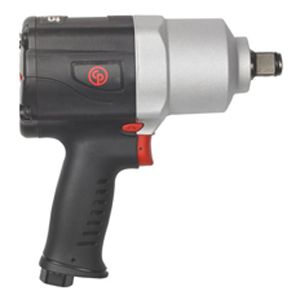

Chicago Pneumatic CP7769 3/4 Inch Composite Impact Wrench with Dual Retainer (Hole + Ring)
The new Chicago Pneumatic CP7769 is a productive ¾ ” composite impact wrench with an ergonomically-designed composite body.
The perfect tool for heavy vehicle mechanical repair & manufacturing equipment maintenance, the CP7769 series combines power (1950 Nm – 1440 ft.lbs) and lightweight , with S2S Technology, the industry's best one-handed forward & reverse switch. You'll be amazed at what this tool has been engineered to do.
Categories: Chicago Pneumatic, Impact Wrenches, 3-4 Inch Impact Wrenches
Free Shipping
$685.50
Model# CP7769
SKU
015451779610
Chicago Pneumatic CP7769 Impact Wrench Features:
- 3/4" composite impact wrench with dual retainer (hole + ring)
- 1,440 ft.lbs (1,950Nm) of maximum torque in reverse
- Low consumption air motor at 31 cfm (14.7 l/s)
- Insulating and lightweight composite handle
- S2S easy forward reverse
- Full teasing developed trigger
Chicago Pneumatic CP7769 Benefits:
- Powerful impact for General Maintenance
- Maximize operator comfort: lightweight and balanced design
- Energy savings: low air consumption
Chicago Pneumatic CP7769 Specifications:
- Part number: 8941077690
- Model: CP7769
- Over carton: 260*260*480 : 10.2*10.2*18.9
- Handle type: Pistol
- Square drive: 3/4":
- Working Torque Range (fwd): 407-1,464 Nm: 300-1,080
- Maximum Torque (reverse): 1950 Nm: 1440 ft.lbs
- Free speed: 7000 rpm
- Blows per minute: 1200
- Net weight: 3.4 kg: 7.4 lb
- Power/weight ratio: 573.5 Nm/kg: 194.6 ft.lb/lb
- Length: 214 mm: 8.4"
- Side to center: 39 mm: 1.53"
- Average air consumption: 3.7 l/s: 7.75 cfm
- Actual air consumption: 14.7 l/s: 31 cfm
- Air inlet thread size: 0.375 "
- Min. hose size: 13 mm: 1/2"
- Noise level: 97 db(A)
- Sound Power: 108 db(A)
- Vibration α (ISO-28927-2): 12.6 m/s²
- Vibration K (ISO-28927-2): 3.4 m/s²
- Socket retainer: Dual
- Clutch type: Twin hammer
- Box dimensions: 253*253*117: 10*10*4.6
| Model# | CP7769 |
|---|---|
| Brand | Chicago Pneumatic |
