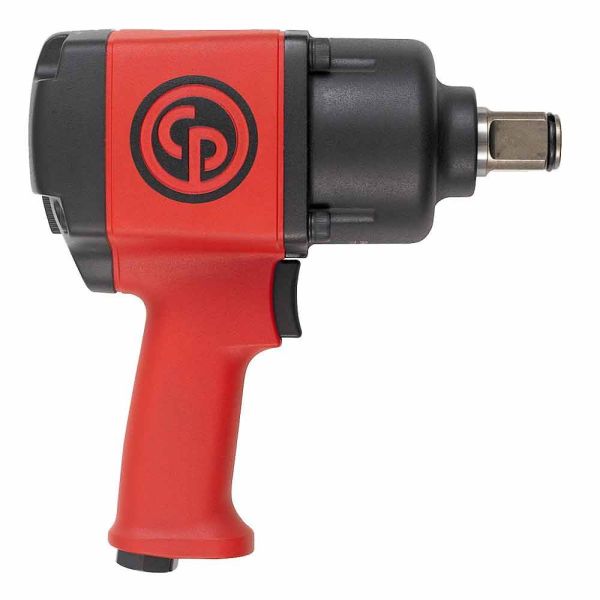

Chicago Pneumatic CP7773 1 Inch Pneumatic Impact Wrench (8941077730)
The Chicago Pneumatic CP7773 is an economical 1-Inch Heavy Duty Impact wrench with all the power and durability you've come to expect from a CP Impact. 1200 ft/lbs torque, twin hammer clutch. 6 vane motor. 3 position regulator and directional control. Also features handle exhaust, ergonomic handle and trigger. wrench Built to last in the most demanding settings, this will be the tool of choice for high volume truck spring, truck maintenance, and heavy equipment shops.
Categories: Chicago Pneumatic, Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$566.81
Model# CP7773
SKU
015451566173
Chicago Pneumatic CP7773 Impact Wrench Features:
- 1" pistol impact wrench with ring retainer
- Twin hammer clutch
- High power: 1200 ft.lbs (1627 Nm)
- Compact size with only 12,1 lbs (5.25 kg)
- Combined power regulator with forward/reverse
Chicago Pneumatic CP7773 Specifications:
- Model: CP7773
- Handle type: Pistol
- Square drive: 1":
- Working Torque Range (fwd): 100-950 ft.lbs: 136-1,288
- Maximum Torque (reverse): 1200 ft.lbs: 1630 Nm
- Free speed: 6300 rpm
- Blows per minute: 900
- Net weight: 12.05 lb: 5 1/2 kg
- Power/weight ratio: 99.6 ft.lb/lb, 296.4 Nm/kg
- Length: 9.2", 234 mm
- Side to center: 1.8", 45 mm
- Average air consumption: 7.5 cfm:
- Actual air consumption: 30 cfm:
- VST2: 48
- Air inlet thread size: 0.375 "
- Min. hose size: 1/2", 13 mm
- Noise level: 96 db(A)
- Sound Power: 107 db(A)
- Vibration (ISO-8662-7): 9 m/s²
- Vibration a (ISO-28927-2): 10.4 m/s²
- Vibration K (ISO-28927-2): 4.2 m/s²
- Socket retainer: Friction ring
- Clutch type: Twin hammer
Chicago Pneumatic CP7773 Benefits:
- Ideal for General Maintenance applications
- Powerful motor and durable clutch
- Operator comfort due to reduced noise level
| Model# | CP7773 |
|---|---|
| Brand | Chicago Pneumatic |
