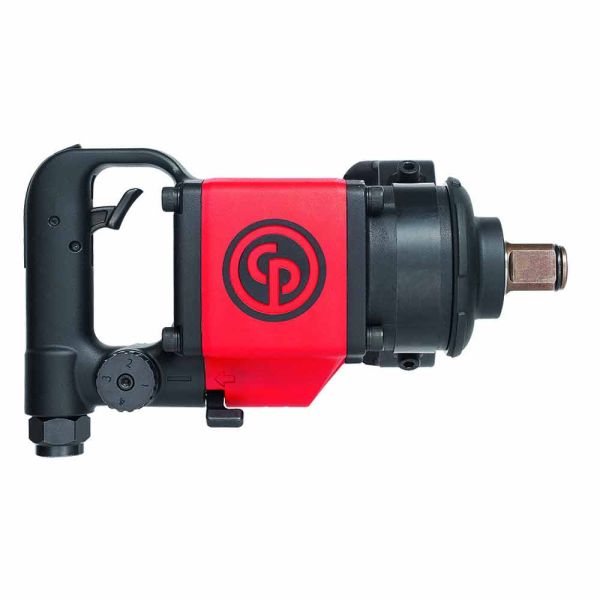

Chicago Pneumatic CP7773D-6 1 inch Impact Wrench - D Handle, 6 Inch EXT (8941077737)
The Chicago Pneumatic CP7773D-6 Straight Impact Wrenches id designed for the heavy duty market. The tools are available in 3/4" and 1" versions and available with an extended 6" anvil. The compact, lightweight impacts weigh 14.3 lbs and 16.1 lbs, deliver 1,300 ft/lbs of torque and have a D-handle in addition to other ergonomic features. With a twin hammer mechanism and steel motor, the impacts have aluminium housing and a composite cover for durability. The forward/reverse lever can be operated single handily, and it can be switched from right-handed to left-handed. With a four-speed setting in both forward and reverse, the impacts can be adjusted to the users requirements.
Chicago Pneumatic CP7773D-6 Impact Wrench Features:
- 14.5 lbs. - 6.6 kg
- 1300 ft.lbs. / 1760 Nm in reverse
- Twin hammer mechanism
- Steel motor
- Intuitive Forward / Reverse lever & power regulator on both sides
- 4 position power settings on both sides
- Side handle with soft touch grip
- Down exhaust
- Aluminum housing
- Composite cover on the clutch housing
- Socket retainer ring
Chicago Pneumatic CP7773D-6 Specifications:
- Part number: 8941077731
- Model: CP7773D
- Handle type: D-Handle Inside Trigger
- Square drive: 1"
- Working Torque Range (fwd): 250-1070 ft.lbs: 340-1450
- Maximum Torque (reverse): 1300 ft.lbs: 1760 Nm
- Free speed: 6600 rpm
- Net weight: 14.5 lb: 6.6 kg
- Length: 11.4": 290 mm
- Side to center: 1.8": 45 mm
- Actual air consumption: 41 cfm:
- Air inlet thread size: 0.5 "
- Min. hose size: 3/8": 13 mm
- Noise level: 98 db(A)
- Sound Power: 109 db(A)
- Vibration a (ISO-28927-2): 12 m/s²
- Vibration K (ISO-28927-2): 3.3 m/s²
- Socket retainer: Friction ring
- Clutch type: Twin hammer
- Box dimensions: 12,8*7,5*5,1: 325*190*130
- Over carton: 13,8*8,3*11,4: 350*210*290
Chicago Pneumatic CP77CP7773D-6 Benefits:
- Great Performance
- Lightweight
- Comfort
- Easy to Use
- Rugged and Robust
- Easy Operation
| Model# | CP7773D-6 |
|---|---|
| Brand | Chicago Pneumatic |
