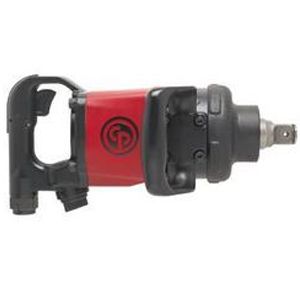

Chicago Pneumatic CP7782 1 Inch D-Handle Impact Wrench with Dual Retainer (Hole + Ring)
The new Chicago Pneumatic CP7782 series is a durable & powerful 1” air impact wrench range, including the CP7782, CP7782-6 with a 6-inch extension and the CP7782-6SP spline version. It’s an affordable tool yet very reliable for tire shops, general maintenance on heavy vehicles and light industrial maintenance.
Categories: Chicago Pneumatic, Impact Wrenches, 1 Inch Air Impact Wrenches
Free Shipping
$769.38
Model# CP7782
SKU
015451701321
Chicago Pneumatic CP7782 Impact Wrench Features:
- 1" D-handle impact wrench with dual retainer (Hole + Ring)
- Pinless closed reinforced rocking dog impact mechanism
- ergotnomic side handle
- Integrated protective cover on the clutch housing
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
Chicago Pneumatic CP7782 Benefits:
- Great power for general maintenance applications
- Reinforced clutch mechanism
- Low vibration for a better operator confrot
Chicago Pneumatic CP7782 Specifications:
- Part number: 8941077820
- Model: CP7782
- Over carton: 670*245*130 : 26,35*9,6*5,11
- Handle type: D-Handle Inside Trigger
- Square drive: 1":
- Working Torque Range (fwd): 500 - 2000 Nm: 370 - 1475
- Maximum Torque (reverse): 2600 Nm: 1920 ft.lbs
- Free speed: 5200 rpm
- Blows per minute: 500
- Net weight: 10.1 kg: 22.2 lb
- Power/weight ratio: 257.425742574257 Nm/kg: 96.4 ft.lb/lb
- Length: 370 mm: 14.7"
- Average air consumption: 4.8 l/s: 10 cfm
- Actual air consumption: 19.2 l/s: 40.7 cfm
- Air inlet thread size: 0.5 "
- Min. hose size: 13 mm: 1/2"
- Noise level: 100 db(A)
- Sound Power: 111 db(A)
- Vibration α (ISO-28927-2): 7.8 m/s²
- Vibration K (ISO-28927-2): 1.8 m/s²
- Socket retainer: Dual
- Clutch type: Pin less closed rocking dog
- Bolt size: M32 :
- Box dimensions: 670*245*130 : 26,35*9,6*5,11
Model# | CP7782 |
---|---|
Brand | Chicago Pneumatic |
